U-Beut 27MHz 5/8λ Signature Edition
$559.00 Inc. GST
In stock
U-Beut 27Mhz Signature Edition

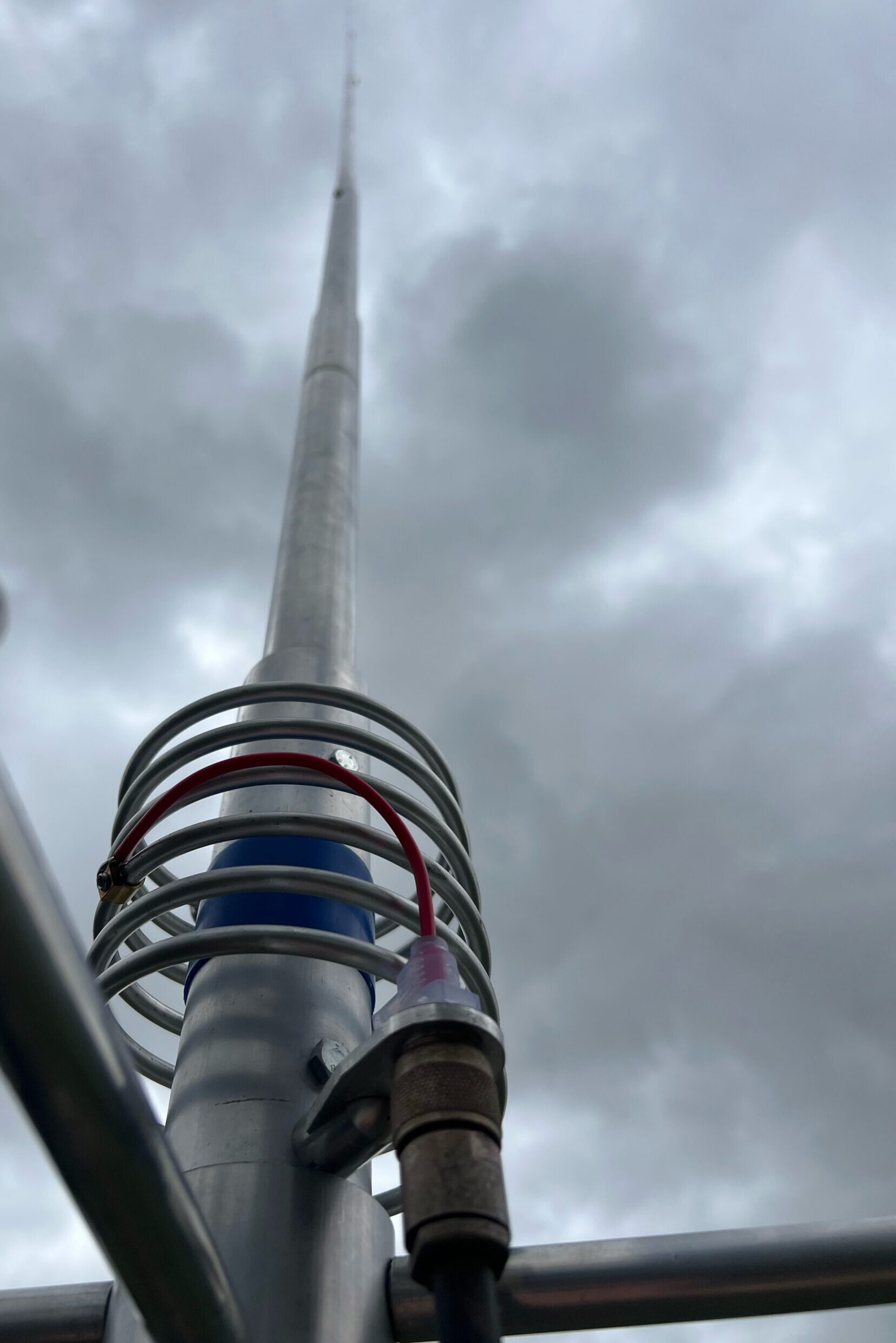

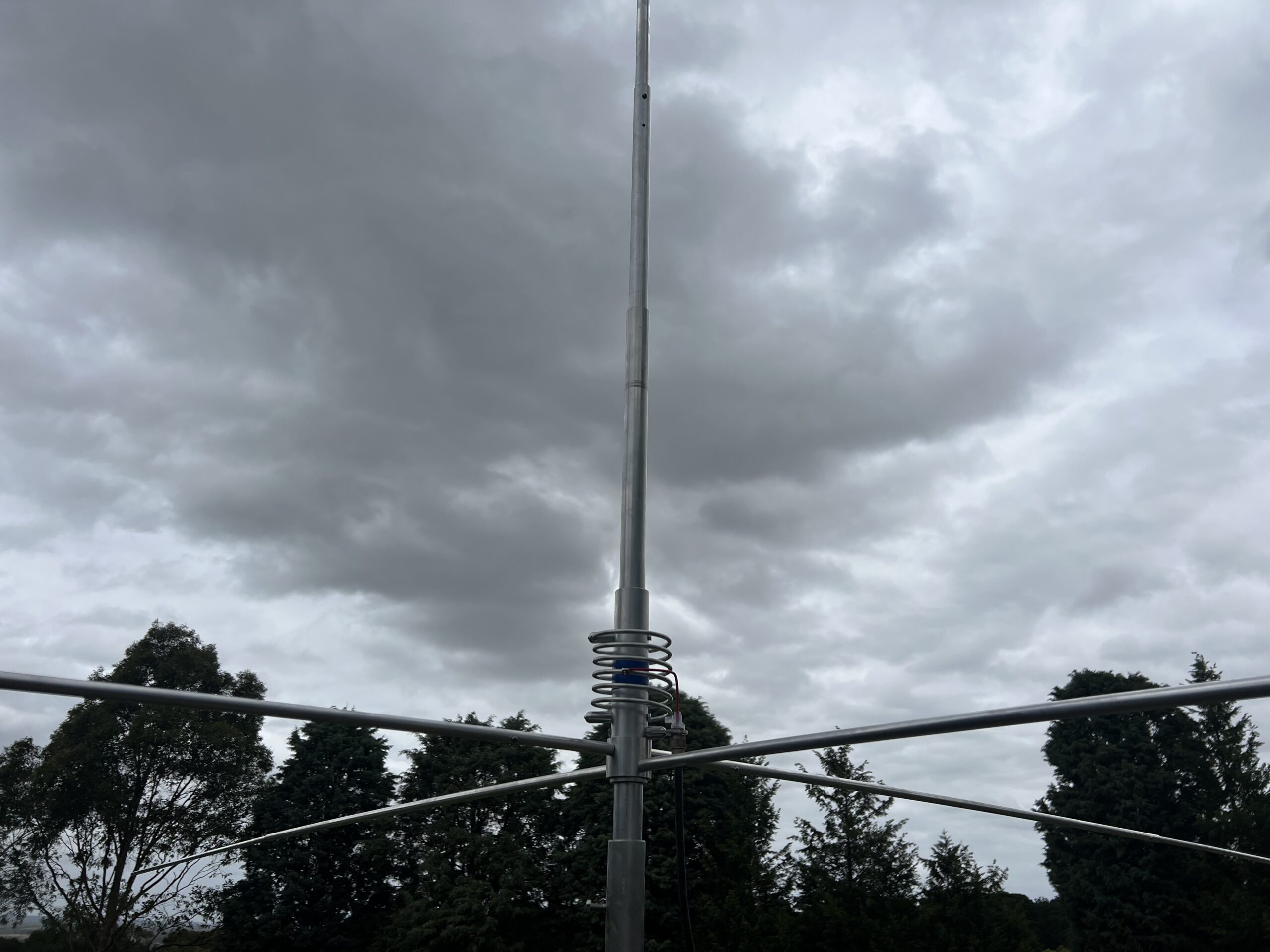

(The Photo’s don’t do it justice)
The U-Beut 27MHz signature edition is a 27MHz CB 5/8 ground plane antenna and represents the very best for those needing and looking for a vertical for DX and local communications.

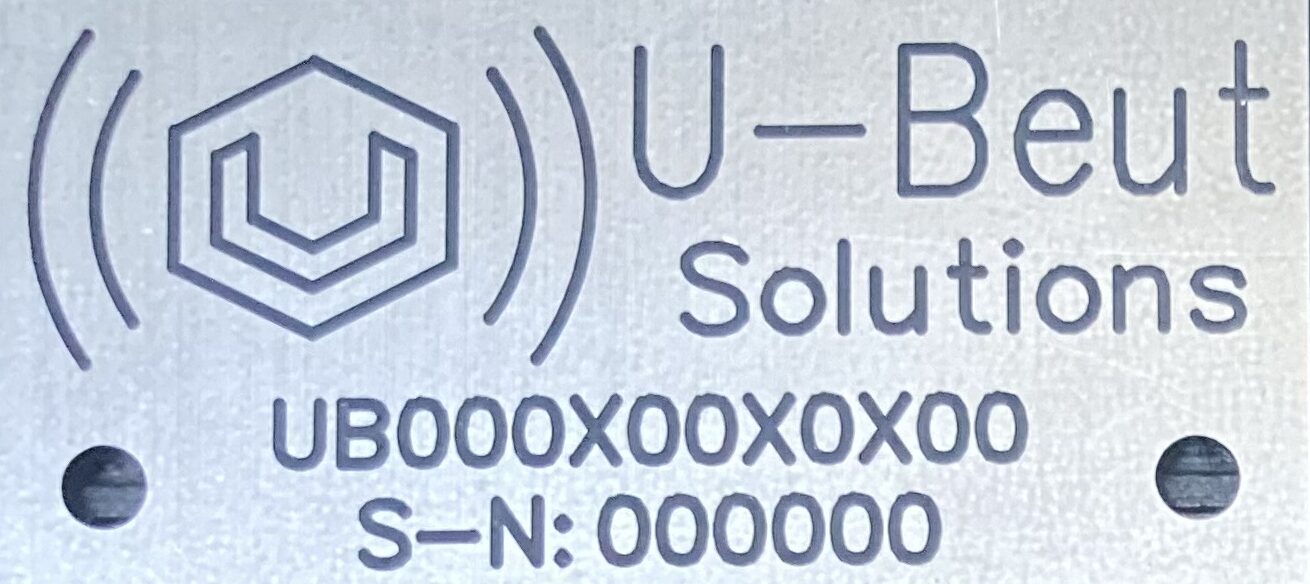

Each antenna is individually serial‑numbered, guaranteeing you’re getting a genuine U‑Beut antenna, handcrafted in Melbourne.
Specification:
- Radiating element: 5/8λ
- 4 x Ground Plane: 1/4λ
- Frequency range: 26 – 30MHz
- Impedance: 50Ω
- Radiation: Omni directional
- Polarization: Vertical
- Gain: 3dBi

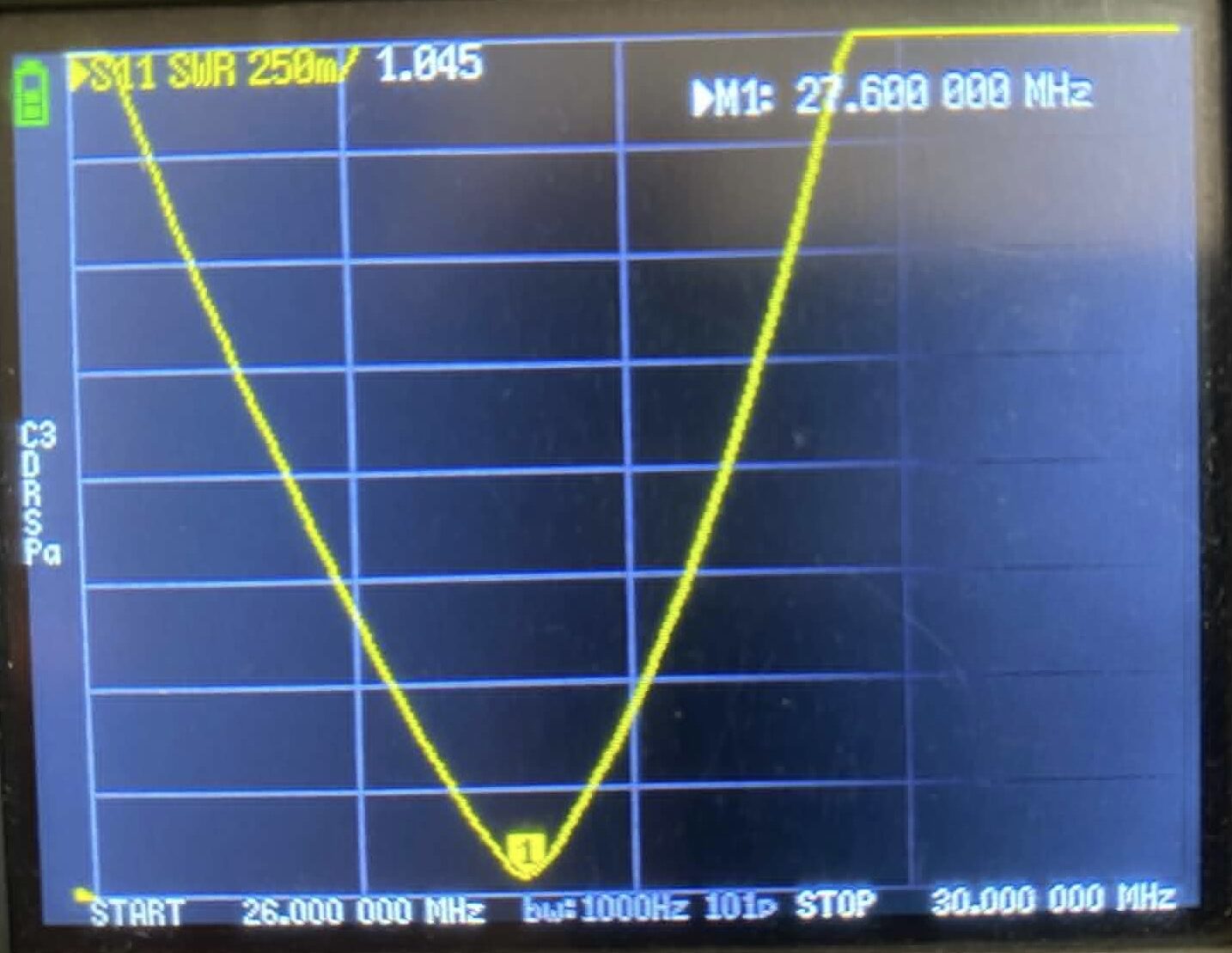

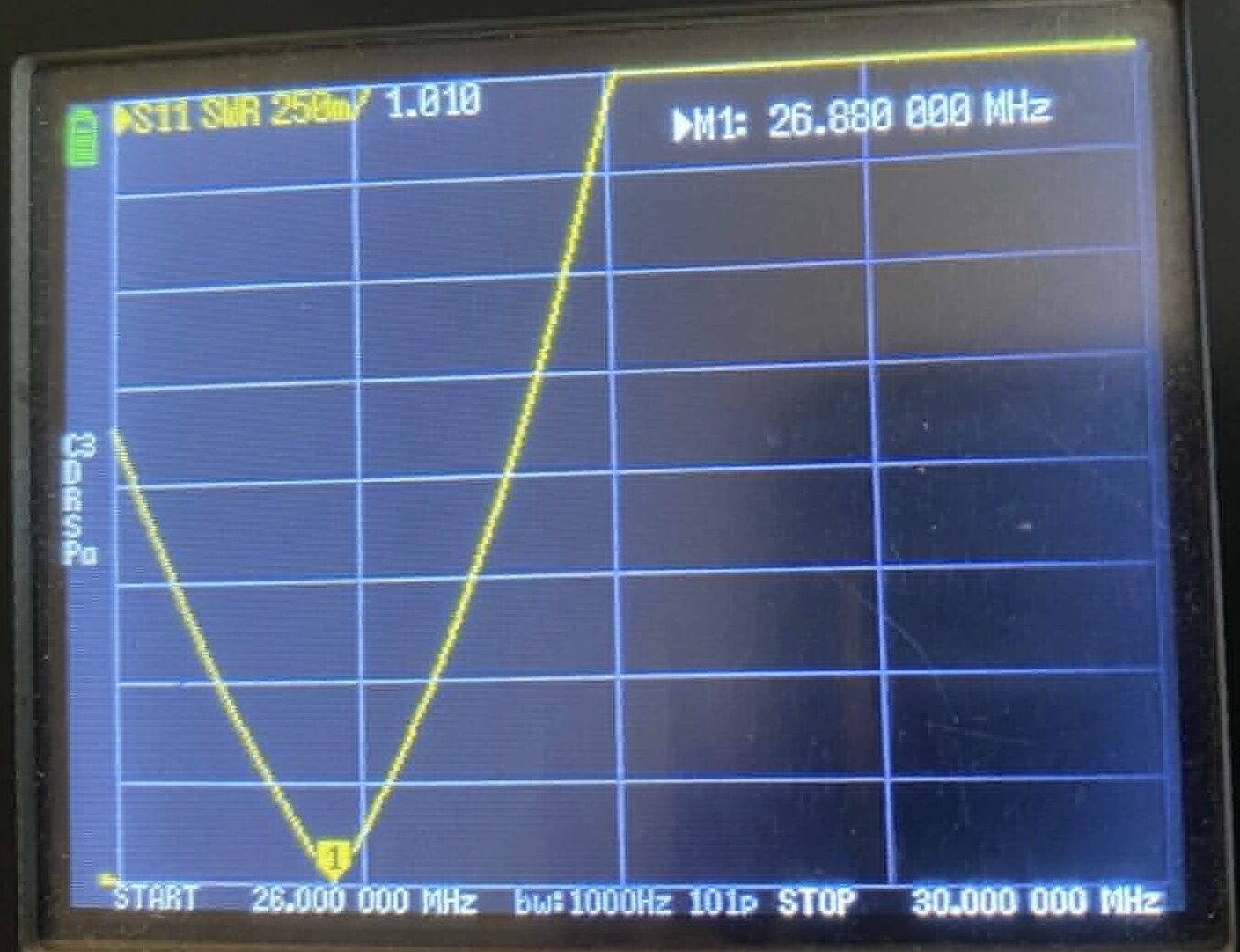

- SWR: <1.5.1 @ 26.965 to 27.405MHz (27MHz CB).
- RF Power: 1Kw PEP.
- Ground: DC
- Termination: SO239 (UHF-female). Type N female connectors are available by special order.
- Mast Clamps: Heavy duty Clamps included (by BNCom)
Installation manual pdf (comming soon).
Due to the item’s size, delivery will be handled by a courier service.
| Weight | 7.5 kg |
|---|---|
| Dimensions | 155 × 20 × 17 cm |
