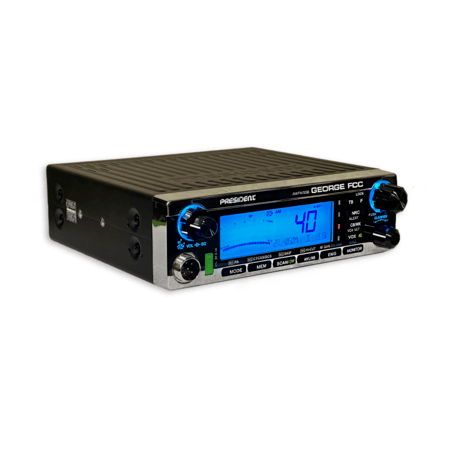

PRESIDENT GEORGE FCC AM-FM-SSB HF CB

User Manual             Data Sheet

GENERAL:

• Antenna socket SO-239 (UHF)
• Antenna impedance 50Ω
• Frequency ranges from 26.965 MHz to 27.405 MHz
• Power supply (Input Voltage) 13.8 V
• Microphone plug front (6 pins)
• Compatible microphone types Electret & Dynamic
• External Vox microphone jack
• External loudspeaker jack
• Public address
• External HP PA socket
• USB-A socket (front) 5 V / 2,1 A

Display:

1. LCD multifunction
2. Dimmer
3. Channel display
4. Frequencies display
5. S-meter Digital
6. Automatic SWR meter
7. SWR Meter

• Modulation modes AM / FM / SSB (USB / LSB)
• Volume adjustment and ON/OFF
• Squelch Manual squelch
• Automatic Squelch Control (ASC)
• Channel selector Rotary
• Mode switch
• F / Menu function key
• Key Beep
• Roger beep
• Key locking
• Tone
• Memory 4
• Channel Shortcuts 2 , emergency channel (EMG) programmable
• Dual watch
• Channel Scan
• Scan Skip
• RF Power
• RF Gain
• Mic Gain
• Clarifier
• Talkback
• Hands Free (Vox)
• TOT
• Filter ANL
• Filter NB
• Filter HI-CUT
• NRC (DSP) Noise Reduction
• Noise Gate
• CTCSS 38 tones
• DCS 104 codes
• Monitor
• Weight- 1.190Kg
• Size- 185 x 172 x 56mm

Transmit:

• Frequency allowance ± 200 Hz
• Carrier power 4W AM/FM, 12W SSB
• Transmission interference < 4 nW (-54 dBm)
• Audio response 300Hz to 3kHz
• Emitted power in the adj. channel < 20 μW
• Microphone sensitivity 3mV
• Drain < than 5 Amp
• Modulated signal distortion 2%

Receive:

• Max. sensitivity at 20 dB sinad 0.5 μV – 113 dBm (AM) / 0.35 μV – 116 dBm (FM) / 0.28 μV – 118 dBm (USB/LSB)
• Frequency response 300 Hz to 3 kHz
• Adjacent channel selectivity 60 dB
• Maximum audio power 3W
• Squelch sensitivity min. 0.2 μV – 120 dBm / max. 1 mV – 47 dBm
• Frequency image rejection rate 60 dB
• Intermediate frequency rej. rate 70 dB
• Drain 200~600 mA maximum (13.8 V)

Please Note: The 2 Year warranty on the box is for the USA market only.
