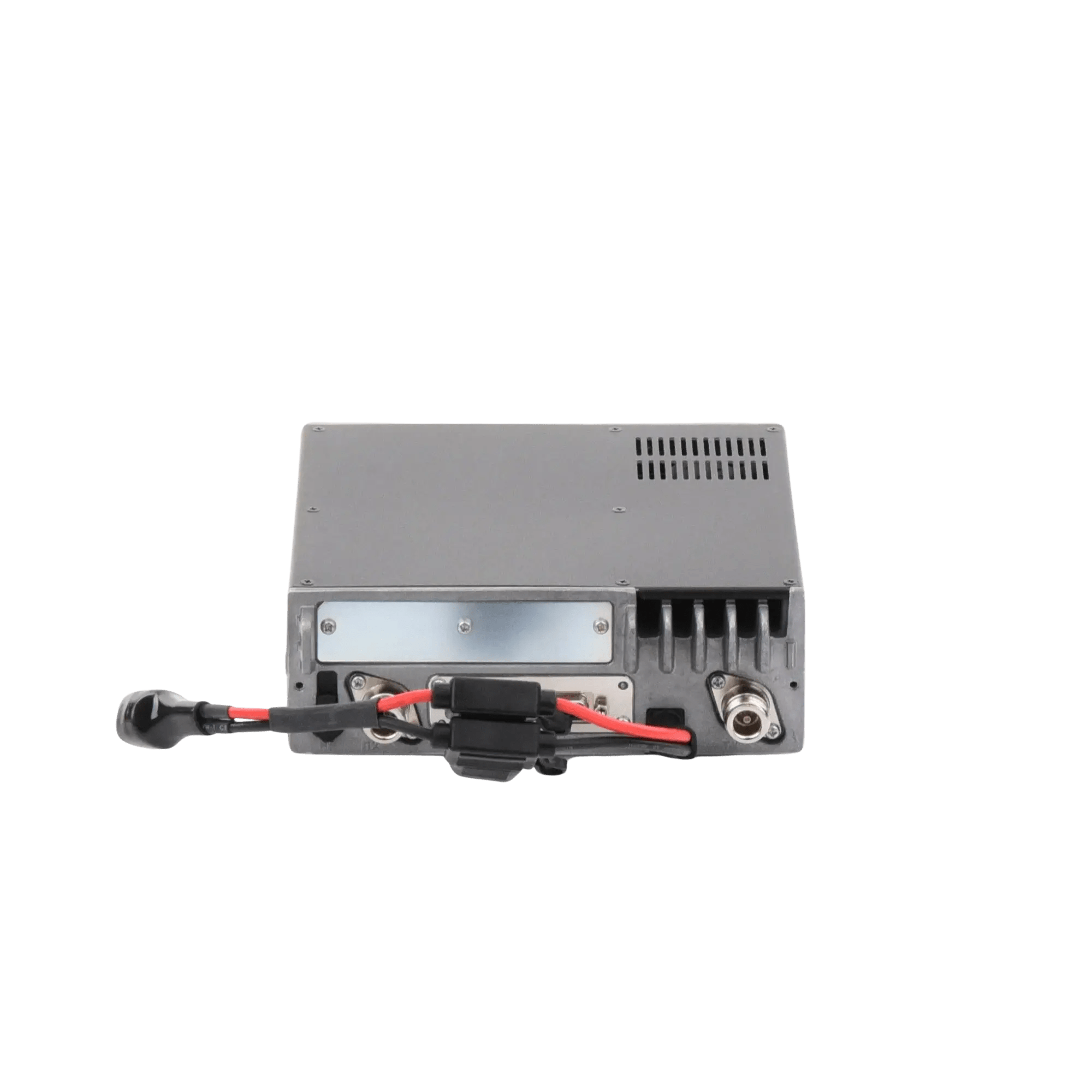

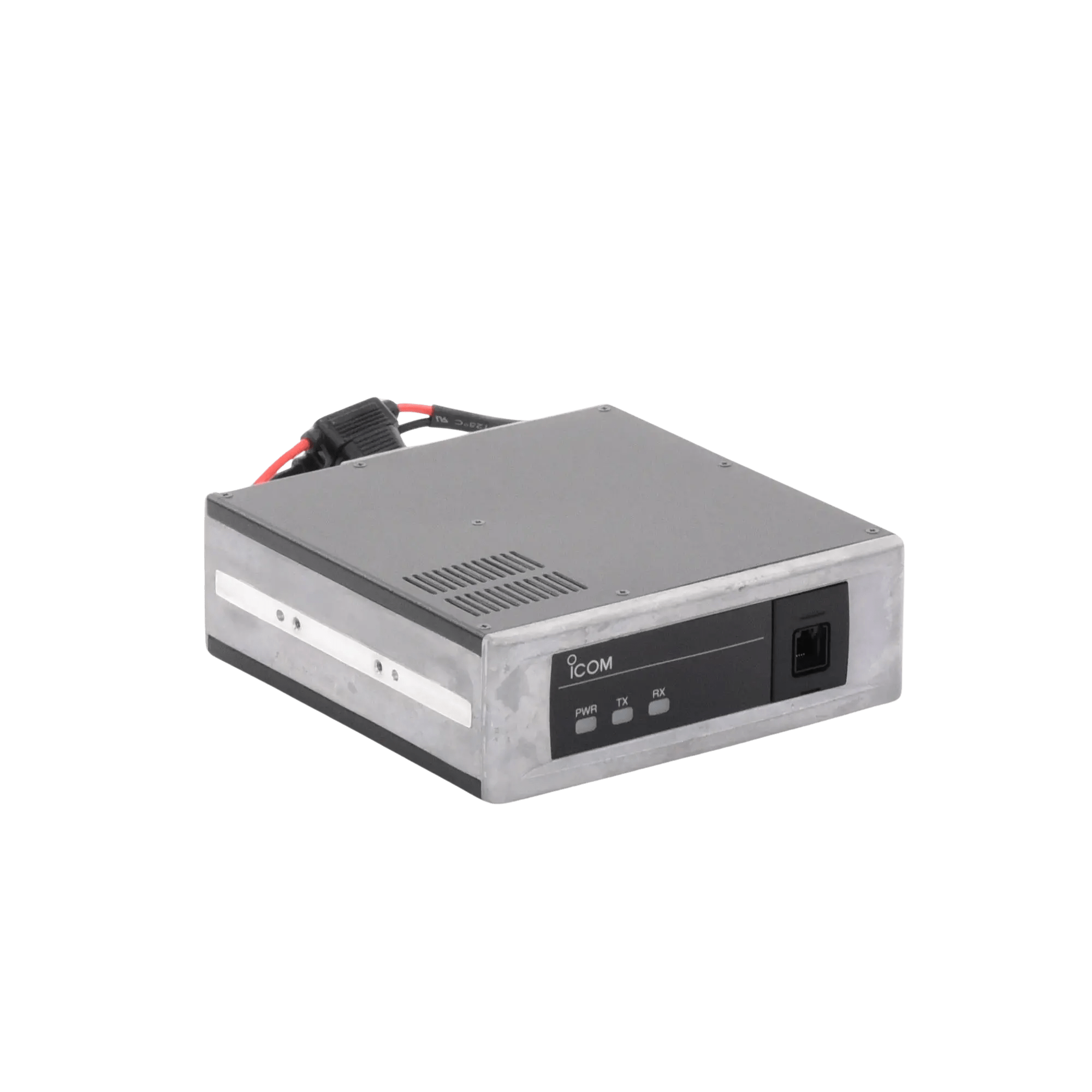

Icom UR-FR5300 & UR-FR6300 Repeater Module
Descriptions
- UHF 50W analog/digital repeater module
- Install in IC-FR5300 & IC-FR6300 for a 2 channel repeater
- Works as an independent repeater from the IC-FR5300 & IC-FR6300
Specifications
- Frequency coverage
136-174 MHz, 400–470 MHz, 450–520 MHz - Number of channels 32 channels / 1 zones
- RF output power (Hi, L2, L1) 50 W, 25 W, 5 W
- Sensitivity Digital (1% BER) –4.0 dBμV (0.32 μV) emf typ. (EN301 166)
Analog (12 dB SINAD) –119 dBm (0.25 μV) typ. (TIA-603)–6.0 dBμV emf typ. (EN300 086) - Dimensions
(projections not included; W×H×D) 176×60×194 mm - Weight 2.2 kg
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Select Band | 136-174MHz, 400-470MHz, 450-520MHz |
